ACEALLY Wire Cages With Wheels


Product Description

 One. Main features of sturdy cage wire mesh

1. Surface treatment:  Zinc plated

2. Available in 5 to 14mm galvanized welded mesh

3. Legs are wrapped and welded around the based-no edges to scratch floors or people

4. Double wire reinforcements at load-bearing surface and top edges

5. Base inside walls protect content from damage

6. Open wire mesh design allows for full visibility for inventory checks, ventilation and cleanliness

7. Good appearance and cleanness Adapts patented technology, with new pattern and unique design, Can also design and produce commercial storage equipment of various specifications according to customer's requirements

8. Offers overall arrangement for all kinds of markets and warehouses

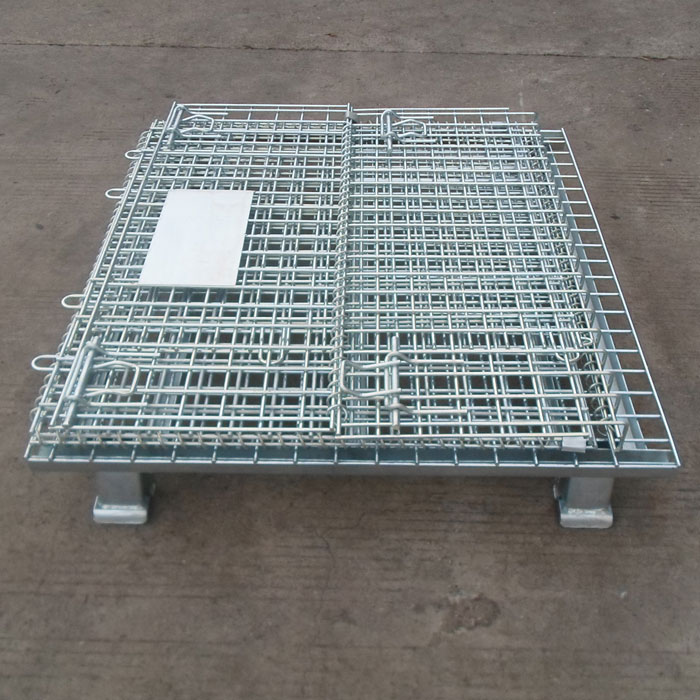

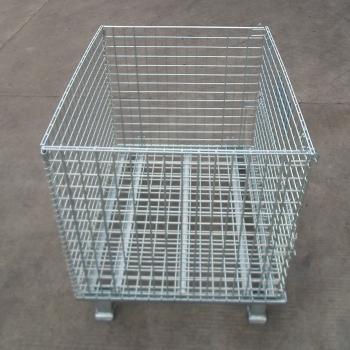

Two. cage wire mesh pictures


The flexible safety locking bolts guarantee the safe and reliable loading for mesh container to

prevent goods from horizontally throwing out.


Reinforced slices in both sides

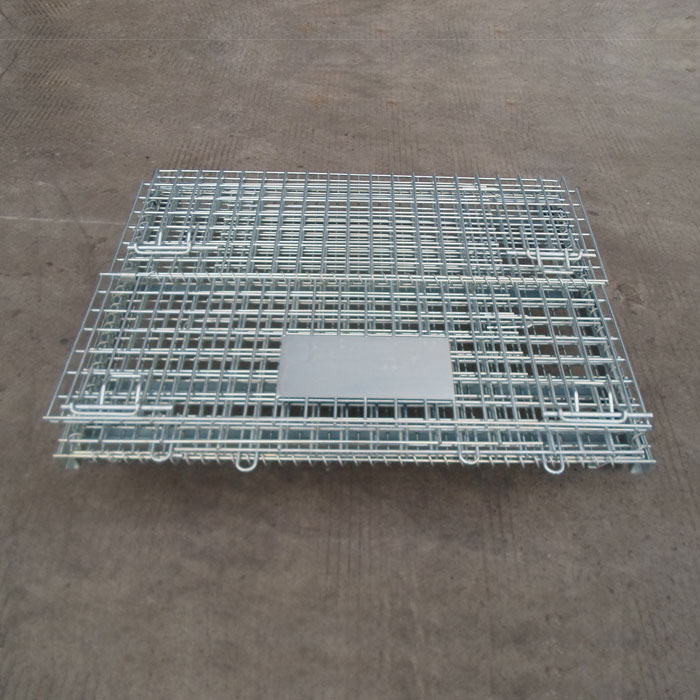

and also the flexible connection strap are convenient for rapid folding and unfolding.


Reinforced U type channel prevents the structure from transforming while loading, and keep the goods safer.

  Multi-angles square-stack legs provide strong support ability of more pieces in one stack.


Remarks: Regarding wire mesh cage

Aceally can supply standard, Europe and United States storage cages. We have variety of models and sizes available for customers to choose, OEM &ODM acceptable.


Aceally cage wire mesh specifications

Length(mm) Width(mm) Height (mm) Capacity (kg) Volume (m³) Wire dia.(mm) Leg height(mm) Mesh grid (mm)
800 600 650 700 0.22 6 100 50*50
800 600 650 500 0.22 6 100 50*100
1000 800 850 1200 0.51 6 100 50*50
1000 800 850 800 0.51 6 100 50*100
1200 1000 900 1500 0.84 6 100 50*50
1200 1000 900 800 0.84 6 100 50*100
800 600 650 800 0.22 6.4 100 50*50
800 600 650 600 0.22 6.4 100 50*100
1000 800 850 1500 0.51 6.4 100 50*50
1000 800 850 1000 0.51 6.4 100 50*100
1200 1000 900 2000 0.84 6.4 100 50*50
1200 1000 900 1000 0.84 6.4 100 50*100

Company Information

  Aceally (International) Group is a manufacturer of innovative and professional logistics equipment products for warehousing storage markets worldwide. Which specializes in light duty shelving, medium duty racking, heavy duty ones and various storage and shelving solutions for nearly 15 years. Please feel free to contact our highly knowledgeable staff and allow us the pleasure of proposing the most innovative and affordable solution to your material handling needs.


Our business scope as follows

Wire Mesh Container
Selective pallet racking VNA Pallet Racking
Longspan shelving Double deep pallet racking Mezzanine Rack
Slotted angle shelving
Drive In pallet racking Cantilever racking
Boltless rivet shelving Radio shuttle racking Wire mesh deck


Our products are 100% compatible to major brands such as Dexion, Redirack, Interlake etc. Designed to AS4084-1993 and complying with the European FEM regulations, SEMA and CE certificate. Our ability to design and custom build systems that suit your specific needs yet accommodate your strictest requirements allows us to propose material handling solutions for virtually any application.
