Steel Wire Mesh Decking for Pallet Racks
< >
Steel Wire Mesh Decking for Pallet Racks

Steel Wire Mesh Decking for Pallet Racks

Product Model: WR003
Wire mesh deck railings is of custom specifications.we can offer you best price with best quality. Welcome to order
24"*46"36"*46"42"*46"44"*46"48"*46"Quick Quote Service
  • Detailed description
  • Inquire Now

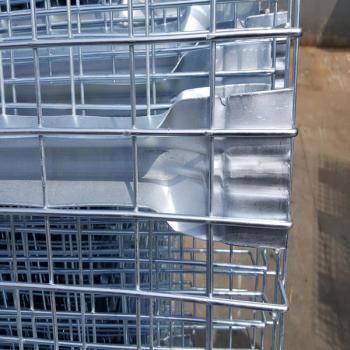

Galvanized Steel Wire Mesh Deck Railings

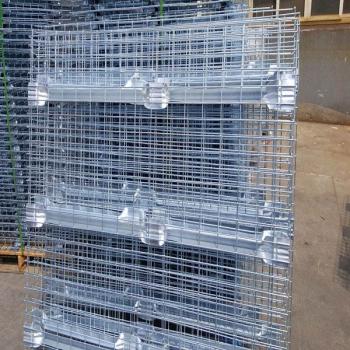

 Standard (aka step) style decking with waterfalls sit in the steps of rack beams.

The support channels on the beam steps and the waterfall wraps over the top of the beam.

This style of wire deck features a flared flange at each end.

The flange allows these decks to be used with either box or step beams.

As with step style, a waterfall wraps around the beam.

Flush decks are exactly the same as standard style - only they do not have a waterfall that wraps around the rack beam.
This style deck gives pallet racking a nice, clean look.

Specifications of shelf wire deck

Model Wire guage Mesh Size Channel(psc) Flared Channel Thickness U.D.L capacity
mm Inch mm Lbs
24"*46" 6 2.5*4.5 3 2 2800
36"*46" 6 2.5*4.5 3 2 2500
42"*46" 6 2.5*4.5 3 2 2100
44"*46" 6 2.5*4.5 3 2 2000
48"*46" 6 2.5*4.5 3 2 1800
36"*52" 6 2.5*4.5 4 2 2500
42"*52" 6 2.5*4.5 4 2 2500
44"*52" 6 2.5*4.5 4 2 2500
48"*52" 6 2.5*4.5 4 2 2500

Steel wire mesh dekcing for pallet racks

Characteristics: 1) Allows the free passage of water so overhead sprinklers operate effectively.
2) Qualifies for a reduction in Fire Insurance Premiums.
3) Reusable trip after trip.
4) Stay cleaner because dirt cannot build up on wire grid.
5) Don't have a disposal fee.
6) Lighter in weight and easy to handle.
7) Won't rot or splinter and have no nails.
8)Build products to your any specification.
9)Finish: Zinc plated or hot dip zinc or powder coating
10)Safer: Batter fire safety preformance, meets stringent insurance requirements.
11) More Durable: Does not warp, twist or sag, highly durable ad maintenance free
12) Hygienic: Does not allow dirt or dust to build up
13)  Easy to Handle: Quick and easy to install- no fixing or fastening
14)  Improves Visibility: Increases lighting and access for operators
15) Versatile: Ideal for all storage, including coolrooms and freezers
16) Flexible: Allows you to store skids, pallets or small parts in any location

Our Excellent Quick Quote Service no hassle just send email to us. We promise to reply within 12 hours.

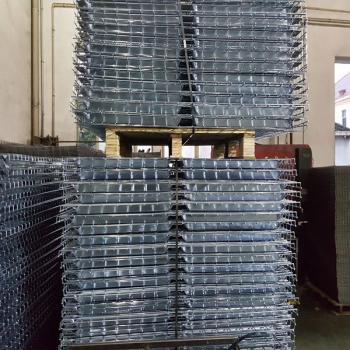

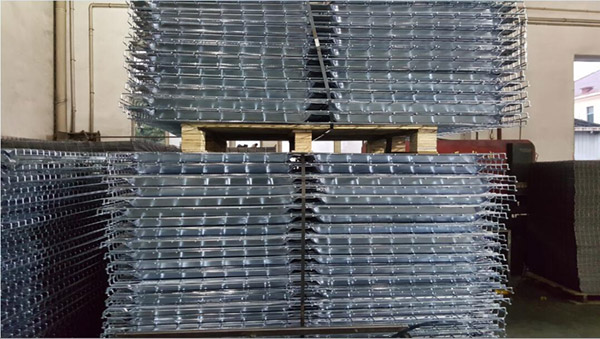

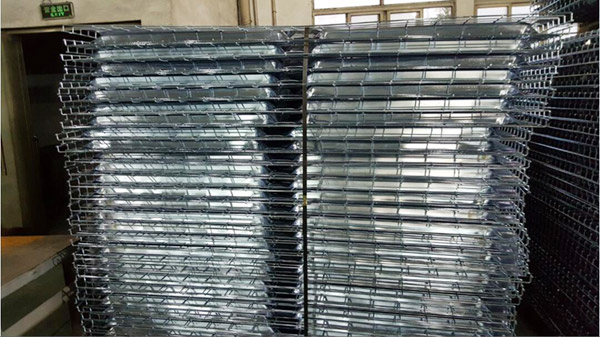

wire mesh decking for pallet racks
