Heavy Duty Drive In Racking System
< >
Heavy Duty Drive In Racking System

ACEALLY Warehouse Steel Heavy Duty Drive-in Pallet Rack

Product Model: drive054
Heavy duty drive in racking system is a system where the pallet is supported on the edge of the pallet and the forklift truck drives into the pallet racking.
  • Detailed description
  • Inquire Now

Aceally Warehouse Steel Heavy Duty Drive-In Pallet Racking System

Breaf Introduction

    •  High density storage allows a great number of pallets to be stored per cubic metre than other storage system

    •  High optimization of warehouse space

    •  Reduce the goods damage

    •  Low stock rotation suitable forseasonal goods and fluctuating stock damand

      Ideal for cold and chill storage, bulk storage applications, batch dispatching

    •  Maximizes your warehouse space, Ideal for a wide range of big and bulky items

Drive in racking system, special emphasis in the selection of the appropriate uprights and other supports structures is essential

* The design principle of the drive in racking is a common series of traditional racking, with no special access or aisle. It is accessed from two rows of racks that are back-to-back or a single set of racks are installed on the wall, and the forklifts use the same gear. This system racking is supported from the inside to the outside, and the goods to be delivered are retracted outwards inwards. The drive in racking system is suitable for raw material storage or transit storage for periodic batch operations and high storage frequency.

Features & Advantages

    •  Prevent the pallets colliding with the sides of the racking structure.

    •  Allow lift trucks to be equipped with side wheels so that they are centralized when moving inside storage aisles

    •  Available OEM design

    •  Leveling of the shelving system

    •  Uniform loading

* Drive in racking system can store up to 75% more pallets in the same size space than the Selective Pallet Racking System, it depends on your application, but it requires fewer aisles.

* It is designed for store few varieties and large quantities of similar goods with maximum space utilization, goods are stores and removes from the same side, or from the opposite side in accordance with 'First-in, First-Out' Principle, It is especially suitable for standard goods units.

* The trucks drive into the racking to load or unload goods, retrieve pallets, which are stored on cantilevered rails running through out the system. The First pallet in is the last one out FILO(First-in, Last-Out) system, unless a Drive-Through system is used whereby pallets can be loaded or retrieved from either side.

* The forklift trucks drive in the tracks on the shelves specially designed to support the pallet along the pallet sides.Stacking often up to 10 meters high and 4 or 5, but sometimes more than 10 deep. This system can provide a very dense storage capacity, often low in access and rotation of products. As the truck enters the shelves, special precautions apply to ensure design compatibility between truck, pallet and load the racks.

Drive-in Racking is a system where the pallet is supported on the edge of the pallet and the Forklift Truck drives into the Pallet Racking. This is the best type of Rack available for a High-Density storage, where space is very limited and it is the best type to choose for seasonal stock that moves quickly.

Our Excellent Service for a quick, no hassle quote just send email to usWe promise to reply within 24 hours.

Heavy Duty Drive In Racking System

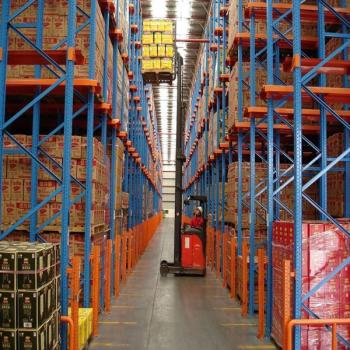

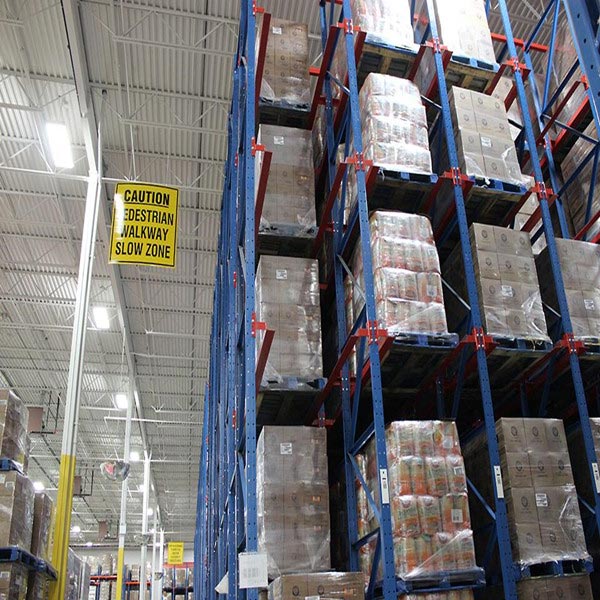

drive in racking system

drive in racking systemdrive in racking systemdrive in pallet racking
