CE Certified Heavy Duty Cantilever Racking System

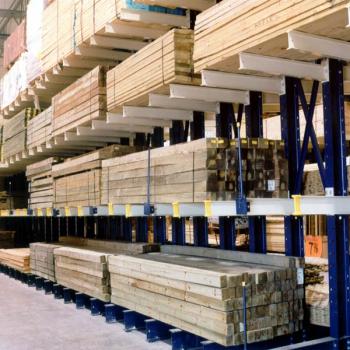

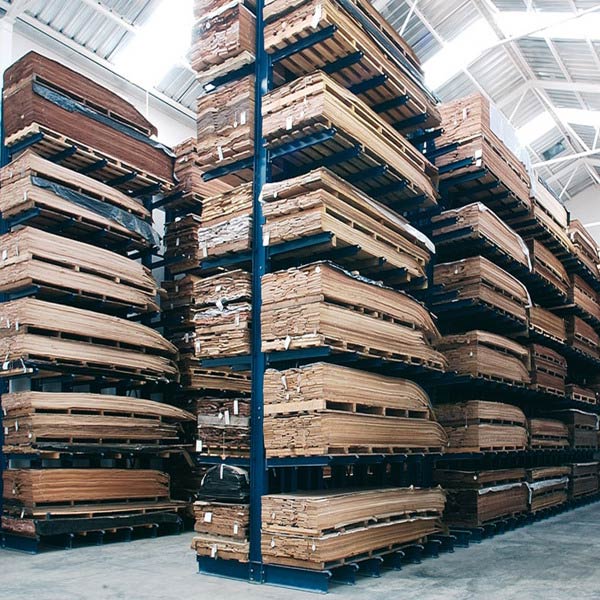

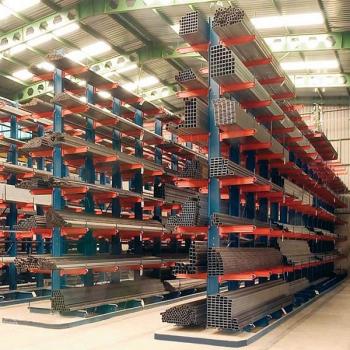

• Cantilever racking is ideal for storing long, irregular and mixed loads, heavy items such as wood boards,tubes,cars, building materials,coils.
• Improve safety, Maximize storage space, Handle large items faster.
• Set up bespoke storage to suits your needs.Safe and orderly storage of long or large products
• Maximum utilisation of horizontal space, Good for both indoor and outdoor use
• The length of the shelf and the distance between the profiles can be adjusted depending on the load
• Maximizes your warehouse space, Ideal for a wide range of big and bulky items
Features & Advantages

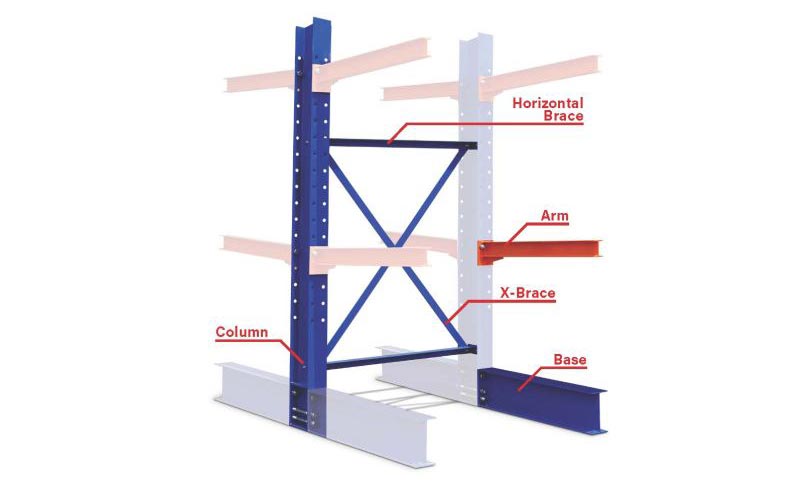

• The uprights, feet and arms are made up of IPE euro profiles
• The most recent software technologies are used to ensure an efficient design
• Available OEM design
• The cantilever system is designed and manufactured according with current European standards, set by FEM
• Quality management is according with EN ISO 9001:2000 implemented and certified by Tuv Rhineland.
1. Height of Cantilever racks column up to 12 meters
2. Available Cantilever arms from 500 Kg to 3tn of loading support.
3. Available cantilever arms from 500mm up to 2.500mm. of length.
4. Cantilever rack with adjustable arms each 100mm in height.
5. Hot dip galvanized finishing or polyester coating for exterior installations
6. Cantilever racks designed for the use of stackers, counterbalance trucks, side loading trucks and cranes.
7. In order to improve the use of space and reduce the working walkway size, the cantilever racks are usually used with guide rail for side loading trucks.
8. Continuous storage systems for cantilever racks, which is the perfect solution in dimension for those non homogenous loading units.
