    Mobile Loading Dock Ramp Yard Ramp-UK Customer

    1070 Mar 12-2024

    Mobile Loading Dock Ramp Yard Ramp(Container Ramp For Forklift)

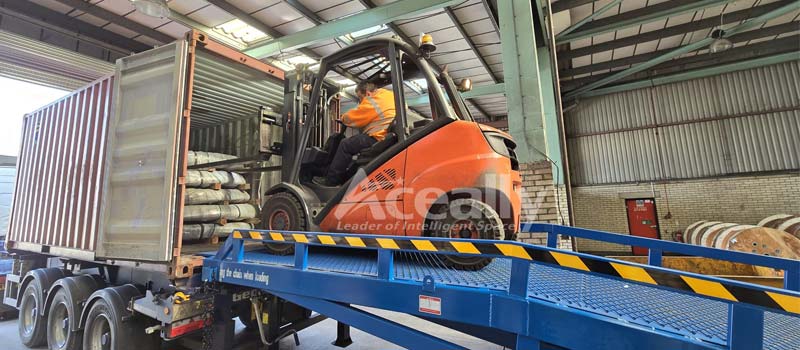

    We export a project (Project NO. AYRC20231027) about USD15,000 to UK last season, Our customers use it to loading and unloading goods from containers. It not only ensures daily goods loading and unloading, but also greatly improves loading and unloading efficiency.
    Project Type: 15T Mobile dock ramp
    Project Date: October 2023
    Location: FELIXSTOWE, UK

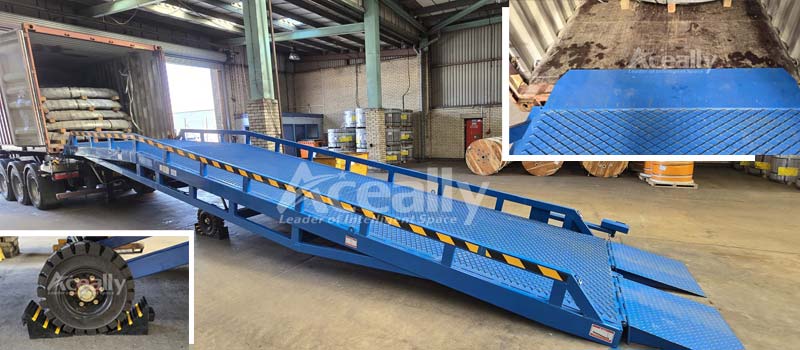

    Yard ramp mobile loading dock ramp


    Mobile loading dock ramp yard ramp

    Project Details:

    1 Overall size 11300mmL*2200mmW*1100mmH
    2 Platform size Slope length7150mmL)、
    Platform plate length3000mmL
    The tail plate length750mm
    The tongue plate length400mm
    Width2200mm
    Steel plate thickness:5mm
    Steel mesh thickness:8mm
    3 Load 15T
    4 Distribution power Manual hydraulic pump, 2 hand legs+ 2 auxiliary legs
    5 Adjustable range 1100-1800mm(H)
    6 Guardrail high 300mm100*50*4mm rectangular pipe
    7 Main beam 200*100*5mm rectangular pipe
    Total 5 main beams
    8 Vice beam 120*60*5mm
    9 Hydraulic cylinder Φ80*Φ452 pcs
    10 Hydraulic oil pipe 32Pma
    11 Solid tire 700-9
    12 Container connectivity   The bridge body is welded with a hook and fixed with a steel chain
    13 Paint Color Generally blue(adjustable); spray-paint
    14 Overall weight ±4000kg

    Our mobile dock ramps have very good quality, Although the rated loading capacity is 15 tons, for the sake of safety, in fact, the maximum loading capacity we design is always 30% greater than the rated loading capacity. And we have got CE and ISO certificate etc. and have been exported to many countries, gain unanimous praise from customers.

    This time in cooperation with the customer, we installed additional side tractors on the mobile dock ramps according to the customer's requirements.

    Although there were some minor incidents after the customer received the goods, it did not affect the customer's satisfaction and love for our products. To this end, customers also showcase our products and company brand on social media platforms such as LinkedIn. We are very grateful for the kindness of our customers

    All in all, it was a very pleasant experience working with the client and I look forward to our long-term cooperation in the future.
