Steel Shelving Systems For Storage

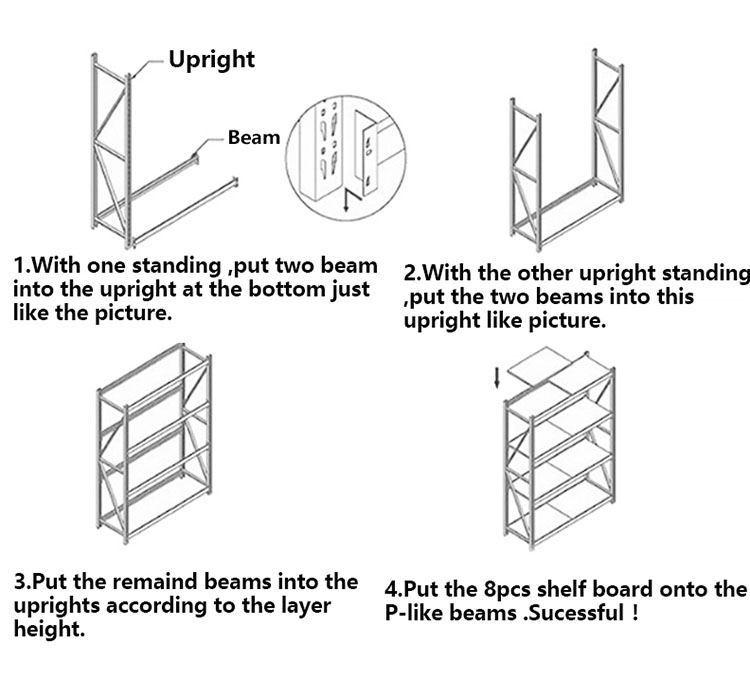

Combined type medium dutyshelf which is special in design and reasonable in structure, which can be assembled and disassembled easily without any screw thread connector. The loading capacity of each layer is 250-400kg/layer. It is widely used in shooping malls, supermarkets, enterprises and institutions. The technical details of this kind of rack has reach the standard in developed countries. The height can be adjusted randomly at every 50mm pitch.
Surface treatment: static powder paint coating

Features & Advantages

    •  The simplest, lowest cost, most popular warehouse racking system in the world.
    •  Convenience to stock management.
    •  Easy to store and pick due to direct access to all pallets.
    •  Compatible with many handling equipment styles.
    •   Lower level pallets can be located on the floor for picking purposes.
    •  Ideal for warehouses, which need to keep a wide variety of products.

Shelf size
Size/Load bearing	100KG	200KG	300KG	500KG
L*W*H(Unit:MM)	1200*400*2000	1070*400*2000	2000*600*2000	2000*600*2000
L*W*H(Unit:MM)	1200*500*2000	1070*500*2000
L*W*H(Unit:MM)	1500*400*2000	1070*600*2000
L*W*H(Unit:MM)	1500*500*2000	1500*400*2000
L*W*H(Unit:MM)		1500*500*2000
L*W*H(Unit:MM)		1500*600*2000
L*W*H(Unit:MM)		2000*400*2000
L*W*H(Unit:MM)		2000*500*2000
L*W*H(Unit:MM)		2000*600*2000
Size, layer and color can be customized.
