    Home-Products- Steel Wire Mesh Products - Wire Mesh Decks -Galvanized Steel Wire Mesh Decking

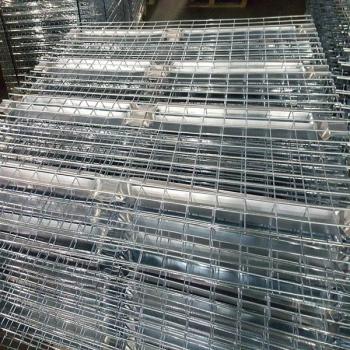

    Galvanized Steel Wire Mesh Decking
    Galvanized Steel Wire Mesh Decking
  • Galvanized Steel Wire Mesh Decking
  • Galvanized Steel Wire Mesh Decking
  • Galvanized Steel Wire Mesh Decking
  • Galvanized Steel Wire Mesh Decking
  • Galvanized Steel Wire Mesh DeckingGalvanized Steel Wire Mesh DeckingGalvanized Steel Wire Mesh DeckingGalvanized Steel Wire Mesh Decking

    Galvanized Steel Wire Mesh Decking

    Aceally wire mesh decking is made of high quality steel material with lowest price. Size and color can be customized. Welcome to order!
      44"*52" 48"*52" 36"*52" 42"*52" OEM AVAILABLE Quick Quote Service

    Galvanized Steel Wire Mesh Decking



    Standard (aka step) style decking with waterfalls sit in the steps of rack beams.
    The support channels on the beam steps and the waterfall wraps over the top of the beam.

    This style of wire deck features a flared flange at each end.
    The flange allows these decks to be used with either box or step beams.
    As with step style, a waterfall wraps around the beam.

    Flush decks are exactly the same as standard style - only they do not have a waterfall that wraps around the rack beam.
    This style deck gives pallet racking a nice, clean look.


    Specifications of wire deck

    Model Wire guage Mesh Size Channel(psc) Flared Channel Thickness U.D.L capacity
    mm Inch mm Lbs
    24"*46" 6 2.5*4.5 3 2 2800
    36"*46" 6 2.5*4.5 3 2 2500
    42"*46" 6 2.5*4.5 3 2 2100
    44"*46" 6 2.5*4.5 3 2 2000
    48"*46" 6 2.5*4.5 3 2 1800
    36"*52" 6 2.5*4.5 4 2 2500
    42"*52" 6 2.5*4.5 4 2 2500
    44"*52" 6 2.5*4.5 4 2 2500
    48"*52" 6 2.5*4.5 4 2 2500


    Main features of shelf wire deck

    Characteristics: 1) Allows the free passage of water so overhead sprinklers operate effectively.
    2) Qualifies for a reduction in Fire Insurance Premiums.
    3) Reusable trip after trip.
    4) Stay cleaner because dirt cannot build up on wire grid.
    5) Don't have a disposal fee.
    6) Lighter in weight and easy to handle.
    7) Won't rot or splinter and have no nails.
    8)Build products to your any specification.
    9)Finish: Zinc plated or hot dip zinc or powder coating
    10)Safer: Batter fire safety preformance, meets stringent insurance requirements.
    11) More Durable: Does not warp, twist or sag, highly durable ad maintenance free
    12) Hygienic: Does not allow dirt or dust to build up
    13)  Easy to Handle: Quick and easy to install- no fixing or fastening
    14)  Improves Visibility: Increases lighting and access for operators
    15) Versatile: Ideal for all storage, including coolrooms and freezers
    16) Flexible: Allows you to store skids, pallets or small parts in any location


    Application of Wire Mesh Decks
