    Steel Wire Mesh Decking Storage Rack Shelf for Warehouse

    Steel Wire Mesh Decking Storage Rack Shelf for Warehouse
    Steel Wire Mesh Decking Storage Rack Shelf for Warehouse
  • Steel Wire Mesh Decking Storage Rack Shelf for Warehouse
  • Steel Wire Mesh Decking Storage Rack Shelf for Warehouse
  • Steel Wire Mesh Decking Storage Rack Shelf for Warehouse
  • Steel Wire Mesh Decking Storage Rack Shelf for WarehouseSteel Wire Mesh Decking Storage Rack Shelf for WarehouseSteel Wire Mesh Decking Storage Rack Shelf for Warehouse

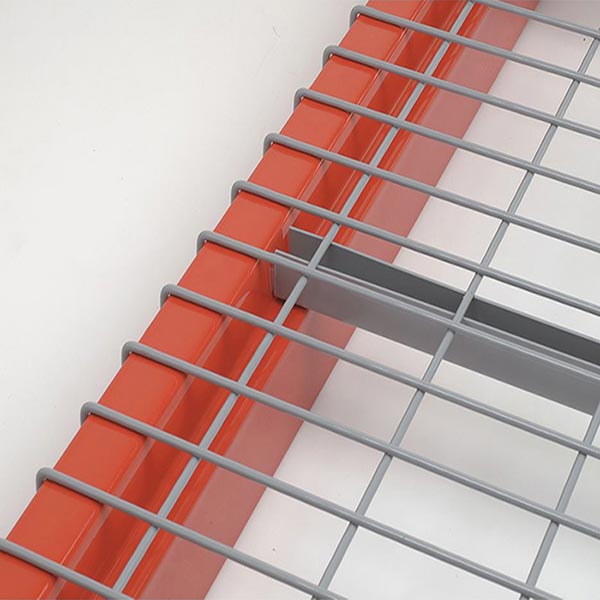

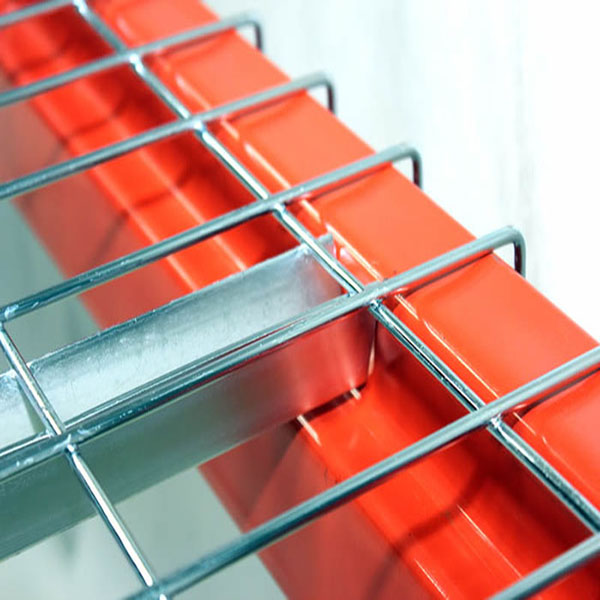

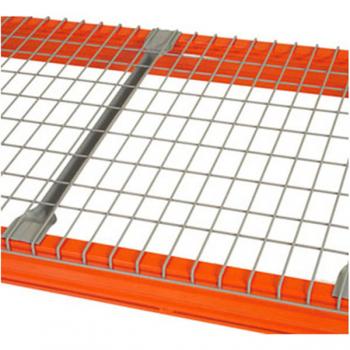

    1. Wire Mesh Decking is actually deep-processing item associated with Welded Wire panels, it's popular in several areas.
    2. Mesh dimension could be personalized, the wire size is generally 5. 0-- 6. 0mm, and also the grid could be 50*50, 50*100, 25*100.
    3. The support bar is actually 2mm width steel plate.
    4. Wire Mesh Deck Supplies a secure area to aid pallets, Wire decking additionally enables water flow in order to circulation in case the damage of the cargo

    Steel Wire Mesh Deck Panels Supplier


    Biref Introduction
    1. Wire Mesh Decking is actually deep-processing item associated with Welded Wire panels, it's popular in several areas. 1. Wire Mesh Decking is actually deep-processing item associated with Welded Wire panels, it's popular in several areas.
    2. Mesh dimension could be personalized, the wire size is generally 5. 0-- 6. 0mm, and also the grid could be 50*50, 50*100, 25*100.
    3. The support bar is actually 2mm width steel plate.
    4. Wire Mesh Deck Supplies a secure area to aid pallets, Wire decking additionally enables water flow in order to circulation in ca


    Specifications of wire deck

    Model Wire guage Mesh Size Channel(psc) Flared Channel Thickness U.D.L capacity
    mm Inch mm Lbs
    24"*46" 6 2.5*4.5 3 2 2800
    36"*46" 6 2.5*4.5 3 2 2500
    42"*46" 6 2.5*4.5 3 2 2100
    44"*46" 6 2.5*4.5 3 2 2000
    48"*46" 6 2.5*4.5 3 2 1800
    36"*52" 6 2.5*4.5 4 2 2500
    42"*52" 6 2.5*4.5 4 2 2500
    44"*52" 6 2.5*4.5 4 2 2500
    48"*52" 6 2.5*4.5 4 2 2500


    Simple to set up. Powerful, long lasting as well as upkeep free of charge. Raises illumination as well. 1000kg capability for each wire mesh panel.
    *Our Excellent Quick Quote Service. We promise to reply within 12 hours.

    Features
      1). Less dangerous: Much better fireplace security overall performance, fulfills strict insurance coverage needs
      2). Stronger: Extremely long lasting as well as upkeep free of charge
      3). Simple to Manage: Fast and simple in order to install-no repairing or even buckling
      4). Flexible: Well suited for just about all storage space, such as coldrooms as well as freezers
      5). Versatile: Enables you to store pallets or even little components in a area.

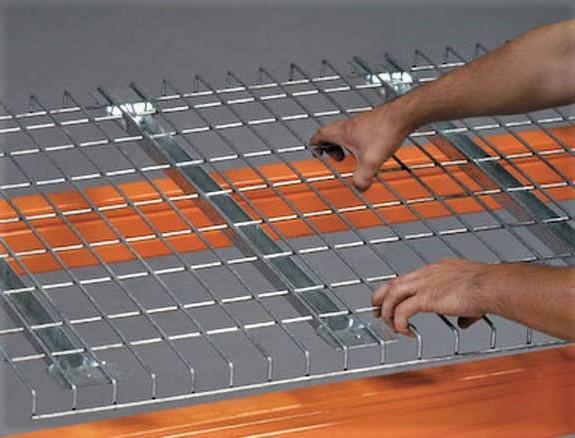

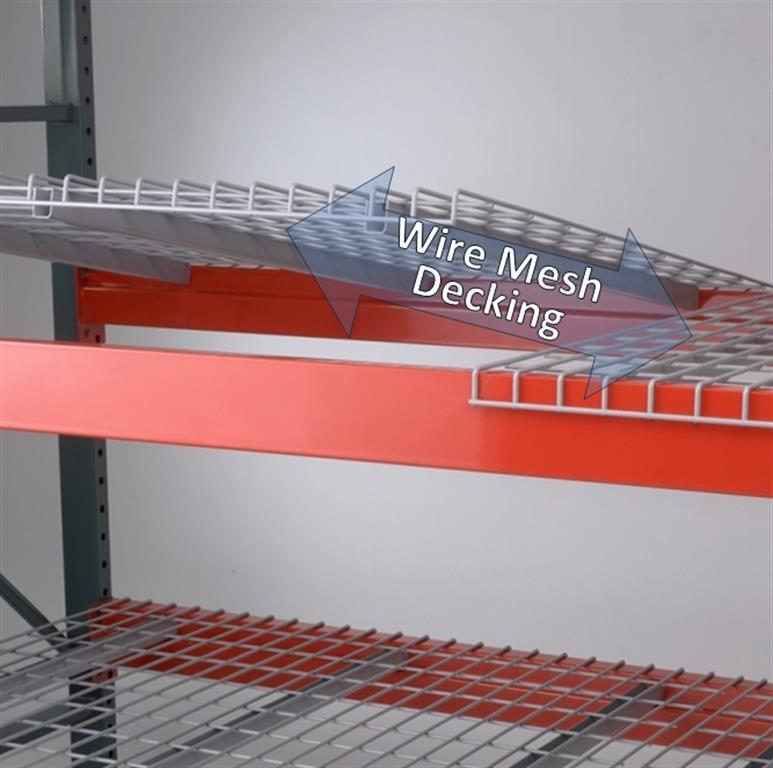

    Application of Wire Mesh Decks

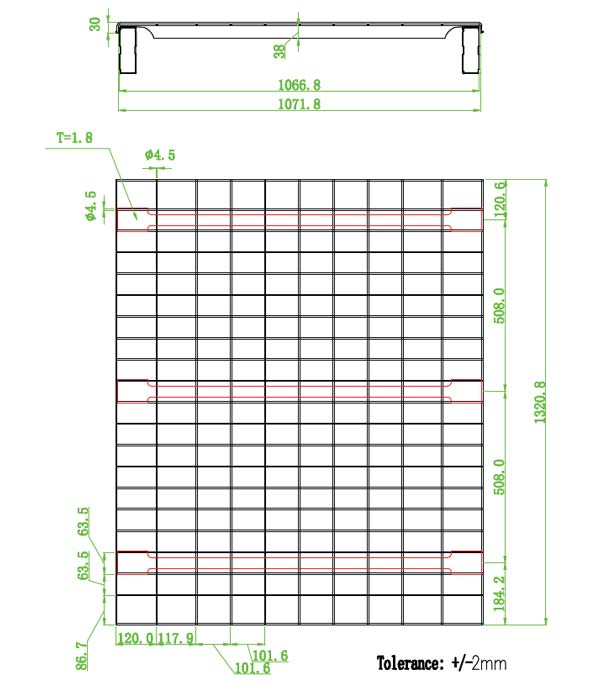

    Drawing of 42"52"Wire Mesh Decking F Channel

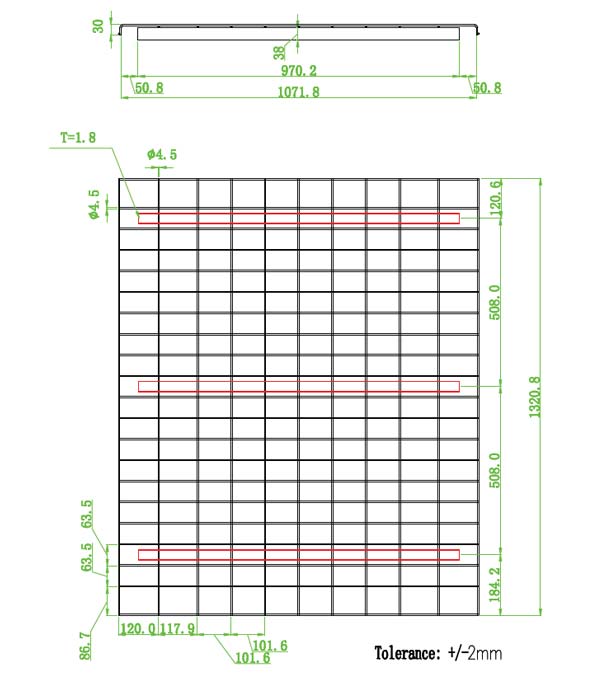

    Drawing of 42"52"Wire Mesh Decking U Channel
